▶ Introduction
Urban road maintenance presents unique construction challenges that heavy full-size rollers cannot resolve. Narrow alleyways, tight curb edges, shallow trench backfill, and delicate thin asphalt overlays demand compact, highly maneuverable compaction machinery tailored for confined city work zones. As the cost-effective sub-series under Dynapac, Redline DRA35 and DRA35C mini rollers are purpose-built to address all core situations of municipal pavement repair projects worldwide.
These two compact 2.3–3.4 ton models deliver differentiated compaction logic: DRA35 is a full dual steel drum vibratory roller for pure asphalt rough and intermediate compaction, while DRA35C adopts front steel drum + rear rubber tire combo design for anti-crack finish kneading. Project managers can select the exact variant to match their daily repair workflows, eliminating the need to rent multiple small compactors for diverse city paving tasks.
This article breaks down their core engineering advantages, differentiated application scenarios, and key technical highlights for global municipal contractors.
▶ Why use mini compactors?
Large 10-ton+ single drum or standard tandem rollers have certain limitations in urban micro-repair jobs.
-Their oversized body width makes them impossible to access narrow passages including sidewalks, community driveways, and compact parking lot aisles.
-Wide turning radius drums easily collide with curbs, concrete gutters, and utility manholes, damaging infrastructure and creating uncompacted edge gaps .
-Large weight rollers often trigger asphalt cracking on thin overlays.
Therefore, a single machine that handles edge trimming, pothole patching, slope compaction and bridge deck finishing significantly streamlines site logistics and cuts labor time.
▶ Differentiated Application Scenarios for DRA35 & DRA35C

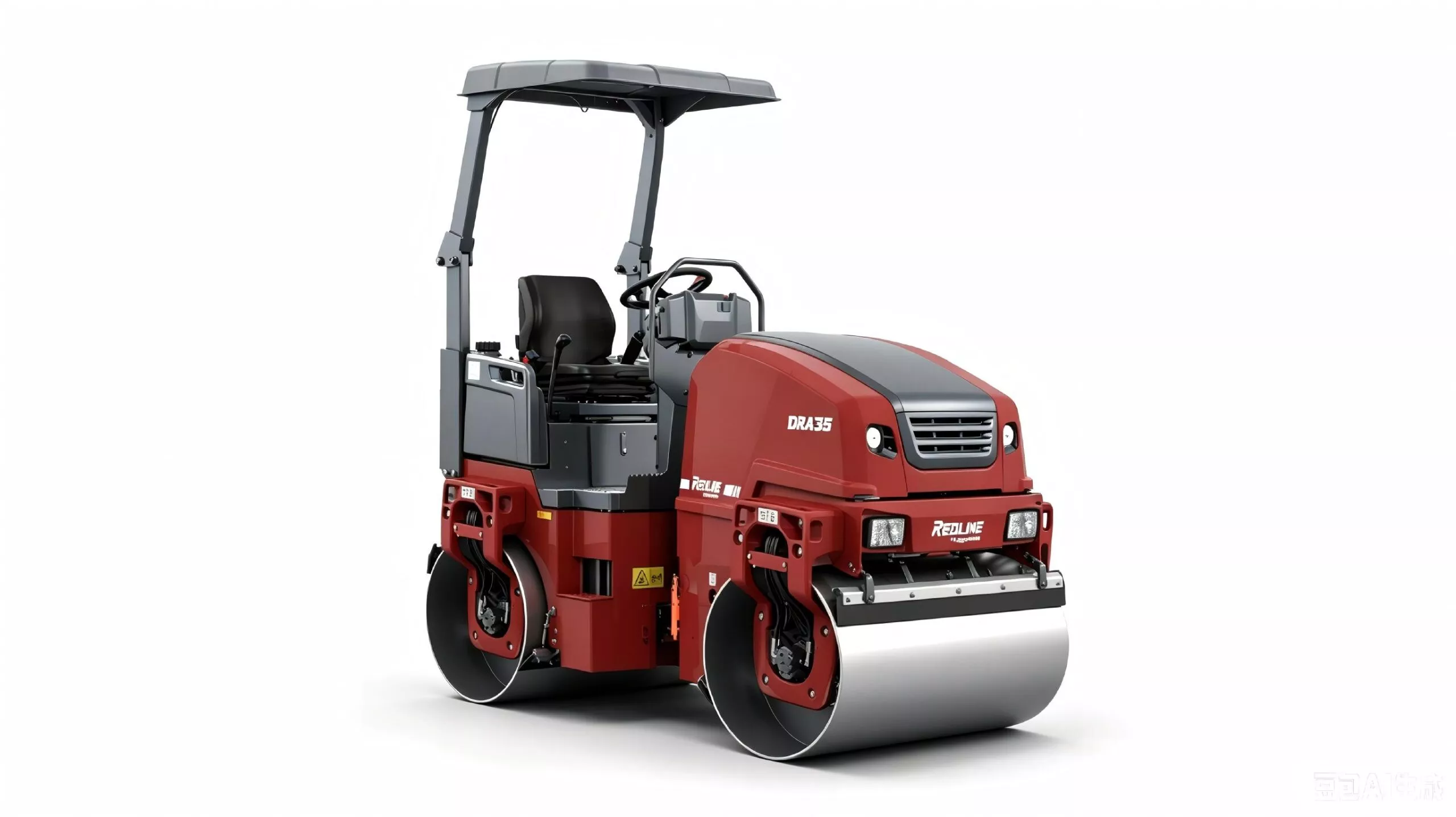

DRA35 Dual Steel Drum Vibratory Roller
The all-steel drum configuration prioritizes powerful vibratory compaction for primary asphalt consolidation tasks. Its standard 50mm offset drum mechanism is the core advantage for curb edge trimming, completely avoiding curb collision while delivering full compaction coverage right up to pavement boundaries.
Global municipal crews deploy DRA35 for four primary jobs: pothole base compaction on city arterial roads, trench backfill compaction after pipeline maintenance, thin asphalt overlay rough rolling, and landscaping path base compaction. Its balanced static linear load and dual vibration frequency ensure consistent density on both hot mix asphalt and cold repair mixtures, without aggregate crushing under controlled amplitude. It also performs steadily on steep construction slopes with steady climbing traction.

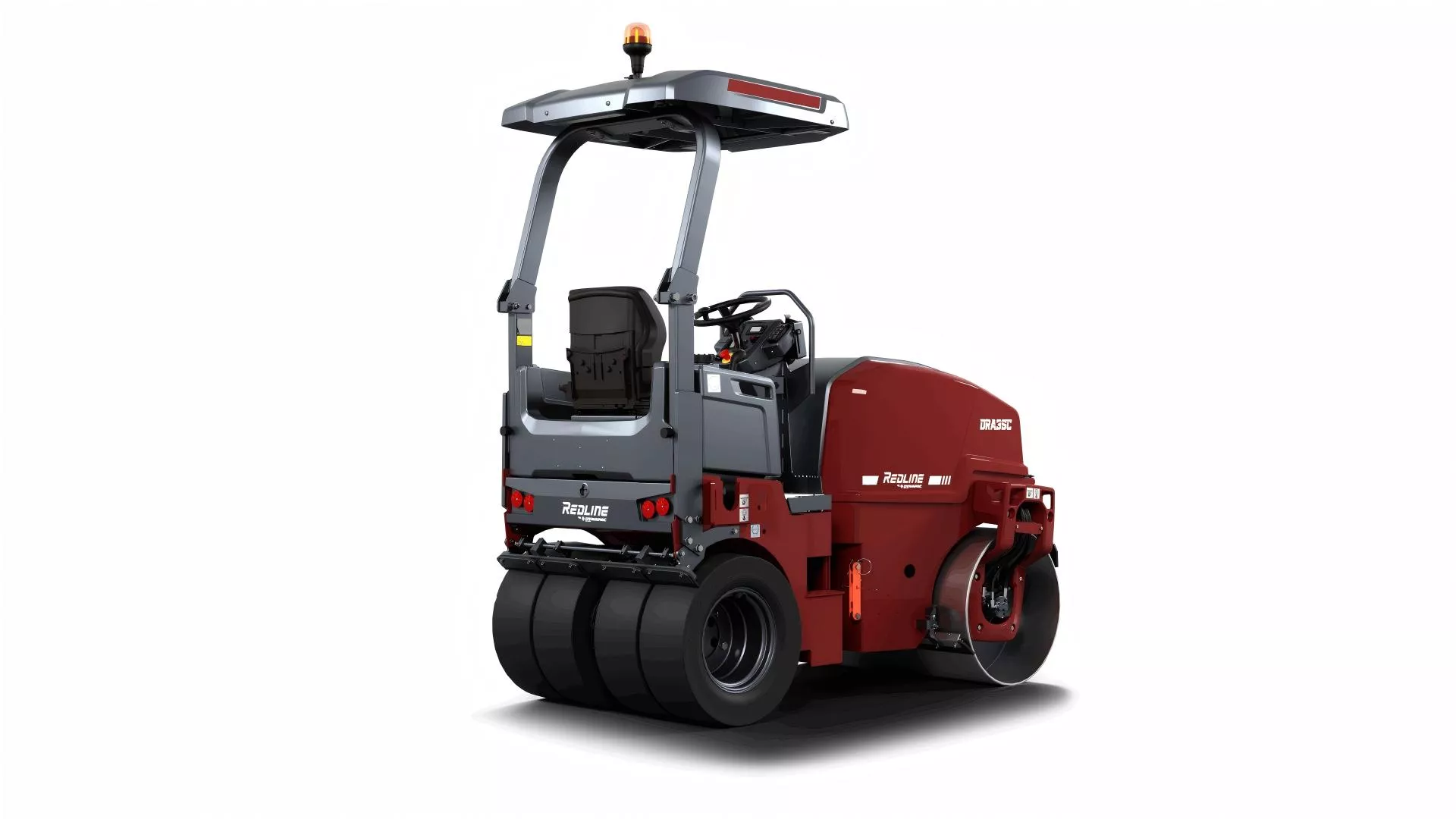

DRA35C Combination Steel-Rubber Roller
The front vibratory steel drum paired with multi-layer rubber rear tires delivers dual-function compaction: vibration tightens asphalt internal structure, while flexible rubber tires create uniform kneading pressure to seal micro voids and eliminate surface cracking. This design is irreplaceable for finish rolling on residential roads, parking lots and bridge decks where surface integrity is critical.
DRA35C’s rubber tires conform to minor surface undulations, bridging tiny gaps left by steel drum vibration. It is widely specified for post-patch final sealing, gentle compaction on thin wearing courses, and slope pavement finishing for pedestrian zones. For project managers focused on residential and commercial lot maintenance, DRA35C reduces post-repair cracking complaints by a large margin compared to pure steel mini rollers.
▶ Key Engineering Features & Competitive Advantages of Redline DRA35/DRA35C
Built with Dynapac’s mature Redline industrial standards, both mini compactors share universal premium configurations while retaining model-specific compaction structures. Below is a concise breakdown of their core strengths, categorized by power, compaction system, human-machine design and safety.
- Robust & fuel-efficient power assembly
Both models adopt Changchai ZN390B water-cooled diesel engines rated at 26.5kW, engineered to sustain stable output under continuous daytime and night construction. Three-step throttle speed adjustment adapts vibration intensity to different asphalt layer thicknesses, cutting unnecessary fuel consumption during low-load edge work. The powertrain matches full hydraulic steering and travel systems for smooth, jolt-free operation on uneven city pavements.
- Industry-standard offset drum & anti-stick compaction setup
A factory-standard 50mm offset drum system is fitted on both variants, maximizing edge clearance against curbs and concrete barriers. Independent front and rear spring scrapers continuously clear asphalt residue from drum surfaces, eliminating manual scraping downtime. Multi-stage filtered pressurized water sprinklers with adjustable flow prevent asphalt adhesion during long shifts, supporting all-day uninterrupted patching work.
- Optimized visibility & ergonomic operator cabin
Rear-positioned water tanks, sliding adjustable operator seats and streamlined engine hoods deliver unobstructed views of both steel drums and pavement edges—critical for precise micro-repair. All control buttons are integrated into the steering handle, paired with a clear centralized instrument panel for intuitive operation with minimal training. Full ROPS/FOPS certified safety frames protect operators during accidental site collisions, complying with global construction safety regulations. Front and rear work lamps extend working hours for night-time urban repair projects that avoid daytime traffic congestion.
- Superior mobility & cross-site adaptability
Compact overall dimensions with a tight outer turning radius enable flexible navigation through narrow residential lanes. DRA35 achieves 42% theoretical gradeability, while DRA35C reaches up to 65%, handling steep ramp paving, bridge approach slopes and uneven trench backfill zones without slippage. Low transport height design lowers logistics costs for cross-city municipal fleet deployment, fitting easily on standard small flatbed trucks without oversized transport permits.
- Low maintenance & long service lifespan
Sealed vibration chambers reduce internal component wear, while modular layout simplifies daily inspection of hydraulic circuits, sprinkler systems and engine assemblies. Universal spare parts across the Redline mini roller line cut inventory costs for equipment rental companies and municipal road departments worldwide. All key structural frames adopt reinforced welding to withstand frequent short-distance transit between scattered urban repair sites.
▶ How to Select Between DRA35 and DRA35C for Your Fleet
Procurement decisions depend on the primary scope of municipal repair contracts.
Choose Redline DRA35 if your projects focus on heavy pothole base compaction, trench backfill and landscaping path subgrade work where high vibratory density is the top priority.
Reason: Its dual steel drums deliver deeper compaction depth for thick repair lifts.
Select Redline DRA35C for crews specializing in residential street maintenance, parking lot finishing and bridge deck thin overlay jobs.
Reason: The rubber tire kneading action prevents premature cracking and delivers a smoother, more water-resistant finished pavement surface.
For large municipal fleets undertaking mixed repair contracts, pairing one DRA35 with one DRA35C covers 100% of urban micro-compaction demands, improving overall project turnover speed.
▶ Conclusion
Modern municipal road repair requires compact, multi-functional compaction equipment that balances maneuverability, compaction quality and operational economy. Redline DRA35 tandem mini roller and DRA35C combination roller fill a critical gap in the global small compactor market, combining Dynapac’s mature compaction technology with city-specific engineering optimizations for curbs, narrow lanes and delicate thin asphalt layers.
Whether operating as an independent road repair contractor, municipal public works department or equipment rental firm, these two Redline mini rollers lower construction defect rates, shorten repair cycles and reduce long-term operational expenditure. Their unified parts supply, global after-sales network and versatile scene adaptability make them a high-ROI addition to any municipal pavement maintenance fleet across all continents.
