Specifications

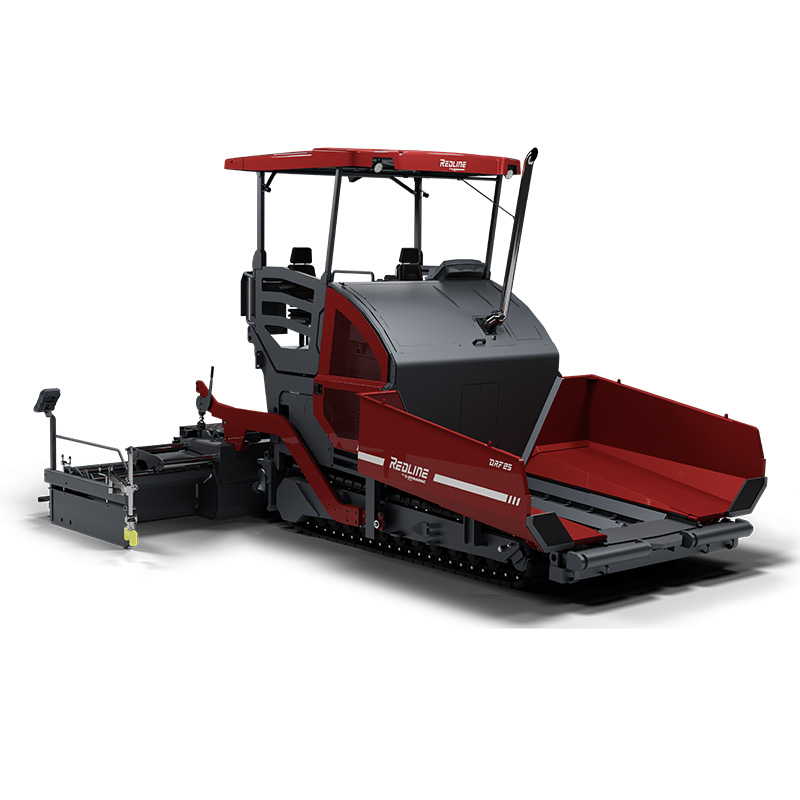

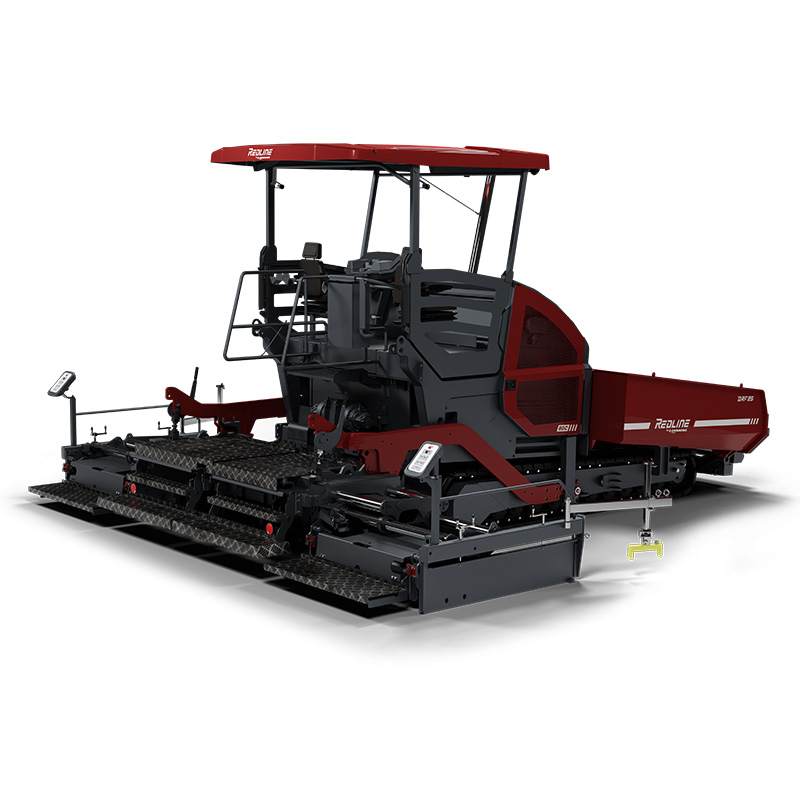

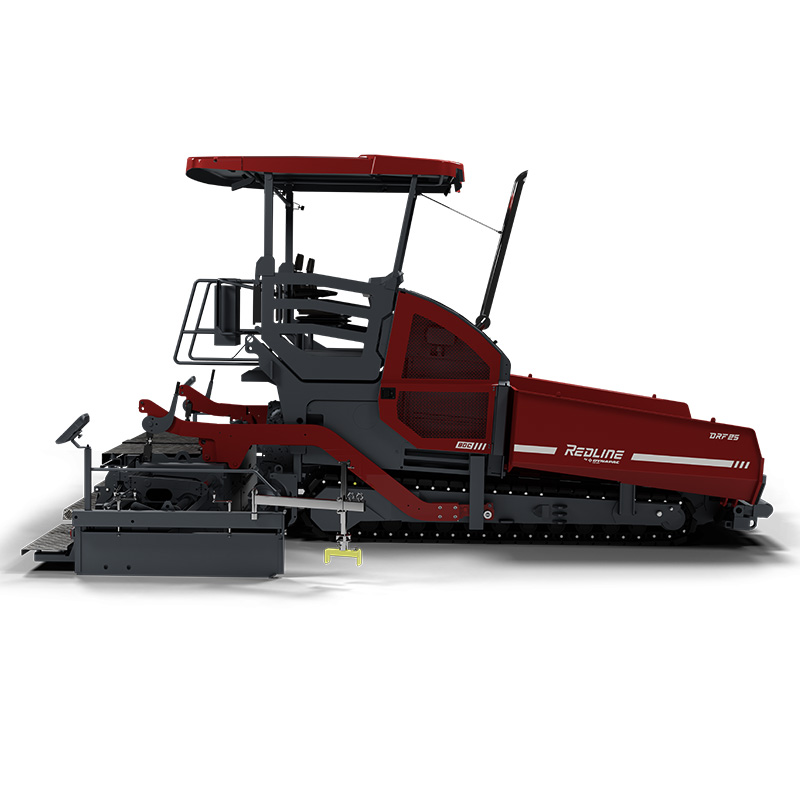

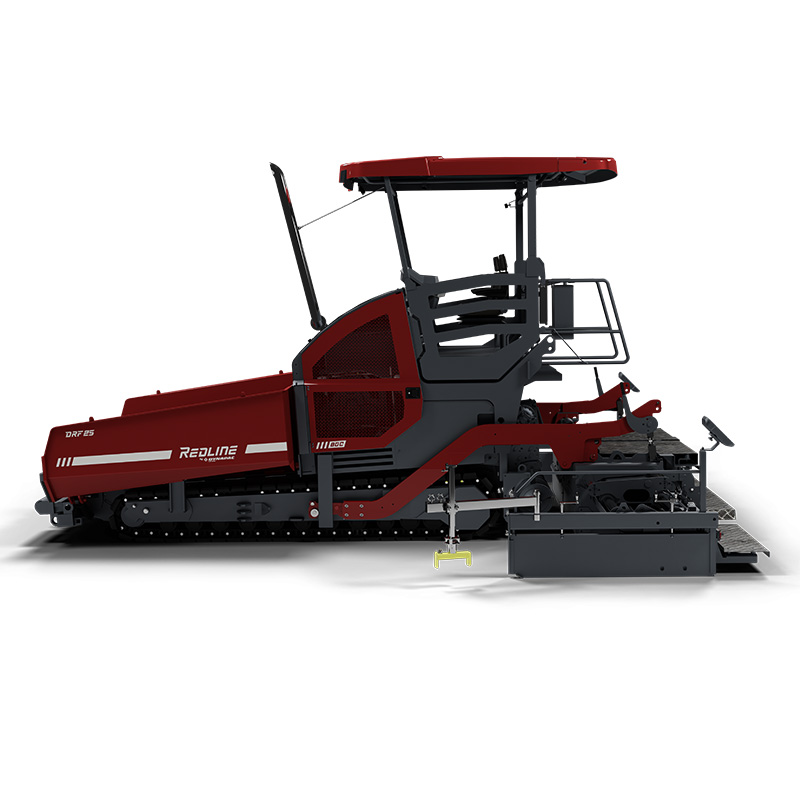

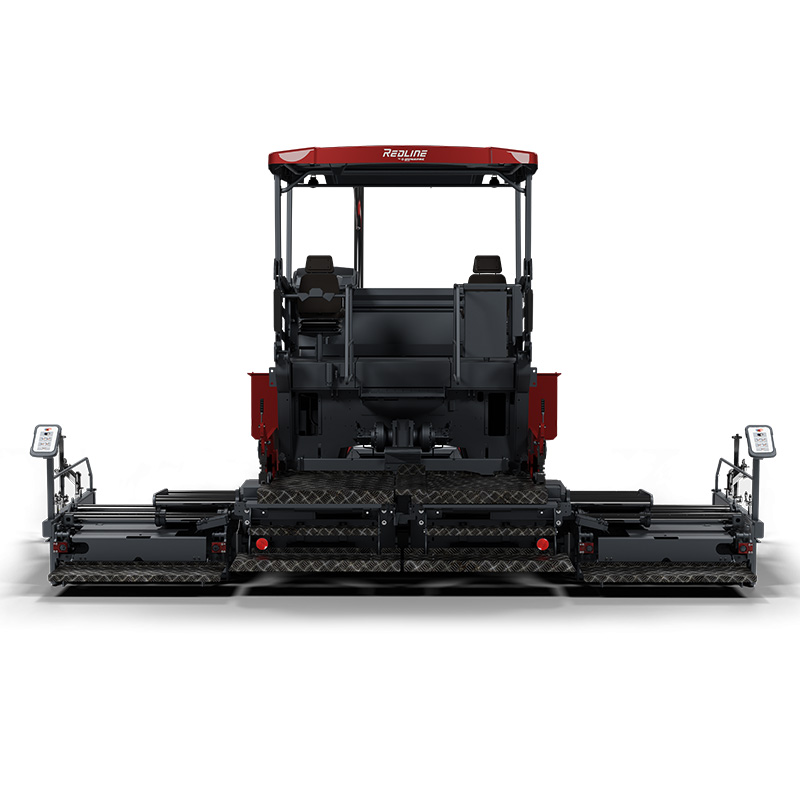

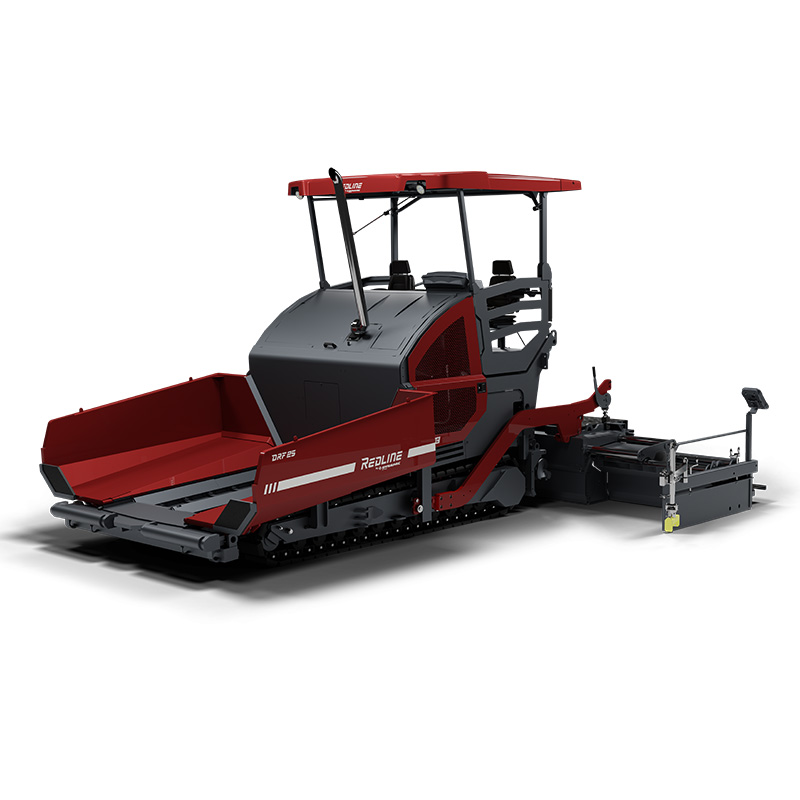

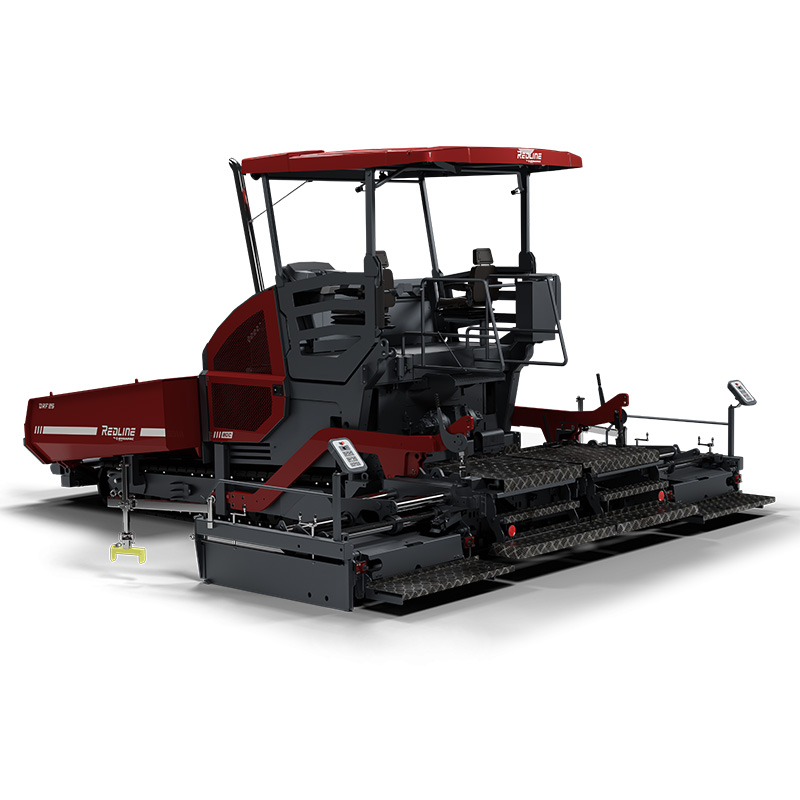

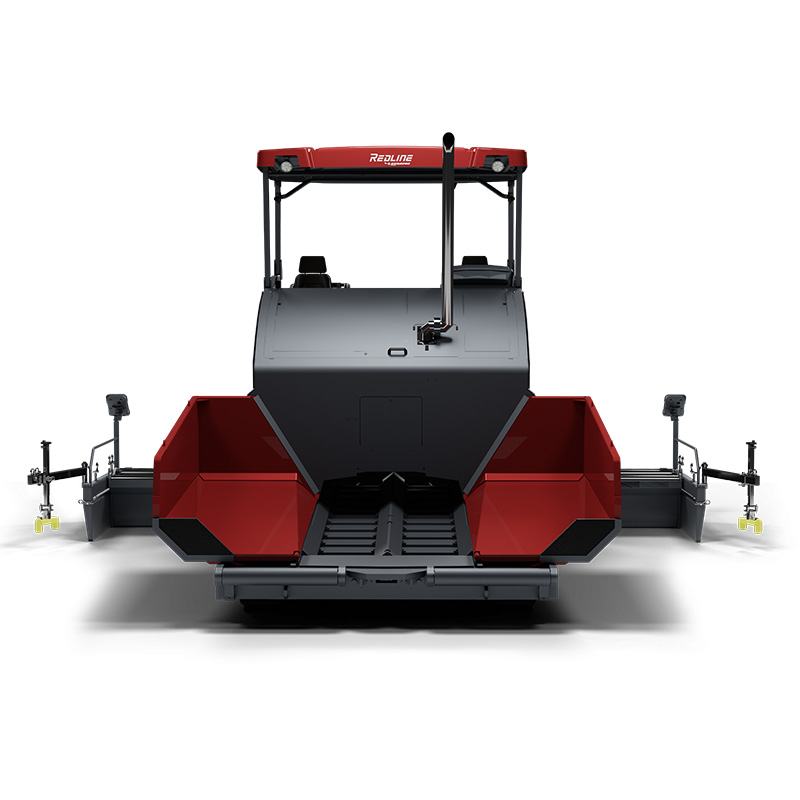

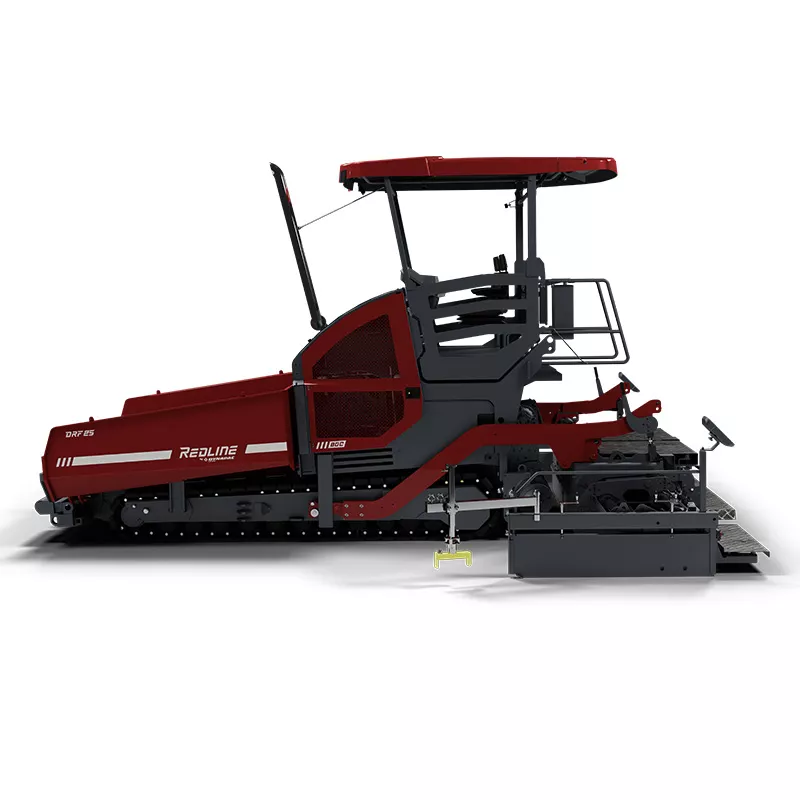

| Category | Item | Unit | DRF25-80C Asphalt Paver |
| Dimensions | Transport width (incl. DRV60 TVE) | m | 3 |
| Transport length | m | 7 | |
| Transport height | m | 3.1 | |
| Max. working width | m | 10 | |
| Weight | Weight (incl. DRV60 TVE screed) | t | 19.7 |
| Weight (incl. DRV51 TVE screed) | t | 18.2 | |
| Capacity | Theoretical placement capacity | t/h | 800 |
| Max. placement thickness | mm | 500 | |
| Max. paving level below zero | mm | -150 | |
| Material Hopper | Capacity | t | 17 |
| Length to push roller | mm | 2,650 | |
| Internal width | mm | 3,400 | |
| Dumping height | mm | 480 | |
| Conveyor | Type | – | Double scraper |
| Width | mm | 2 × 655 | |
| Control | – | 2 independent, with limit switches & speed control | |
| Reversible | – | Yes | |
| Engine | Manufacturer/Model | – | DCEC B5.9CS4 210C |
| Type | – | 6-cylinder water-cooled diesel | |
| Rated power | kW @ rpm | 154 @ 2000 | |
| Emission standard | – | China Phase IV | |
| Electrical system | V | 24 | |
| Fuel tank capacity | L | 362 | |
| Drive | Type | – | Hydraulic drive |
| Crawler (L × W) | mm | 3,360 × 320 | |
| Paving speed | m/min | 26 | |
| Transport speed | km/h | 4 | |
| Gradability (front/rear) | ° | 15 / 15 | |
| Auger | Diameter | mm | 380 |
| Height adjustment | – | Hydraulic | |
| Control | – | 2 independent, proportional speed control | |
| Reversible | – | Yes | |
| Height adjustment range | mm | 250 | |
| Operation | Operator console | – | Slidable, ergonomic dashboard with toggle switches |
| Platform | – | Dual seat concept with foldable canopy | |
| Screeds | |||
| DRV51 TVE | Base width | m | 2.55 |
| Hydraulic extension | m | 5.1 | |
| Max. working width | m | 8.8 | |
| Compaction system | – | Tamper + vibration | |
| Heating | – | Electric | |
| Weight | kg | 3,300 | |
| DRV60 TVE | Base width | m | 3 |
| Hydraulic extension | m | 6 | |
| Max. working width | m | 9.7 | |
| Compaction system | – | Tamper + vibration | |
| Heating | – | Electric | |
| Weight | kg | 3,800 | |
| DRR30 TVE | Base width | m | 3 |
| Hydraulic extension | – | N/A | |
| Max. working width | m | 10 | |
| Compaction system | – | Vibration | |
| Heating | – | Electric | |
| Weight | kg | 2,300 |
